Home Products NGT Taper Thread Gauges
We are Manufacturer
We are Manufacturer
COD available
Thread Gauges

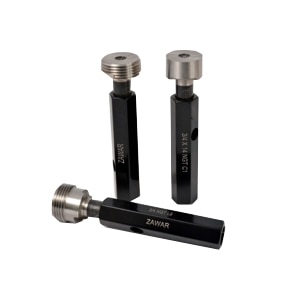

NGT Taper Thread Gauges

Share with
Share this on :

Description

Product details

We are Manufacturer and Supplier of NGT Taper Thread Gauges, Taper Thread Plugs, Plain Taper Plug Gauges, Taper Thread Ring Gauges, Master Check Plugs & Plain Taper Ring from Pune, Maharashtra, India. NGT (National Gas Taper) Threads are used to check Gas cylinder valve stems and cylindrical neck threads. (Taper 1 IN 16 on diameter) Specification • American Handbook H-28 Part II - 1957 * 3/4"-14 NGT size is manufacured as per IS 9121-2005 , on customer request. Manufacturing Range Taper Thread Plugs - Gauge L1 & Gauge L9 Plain Taper Plug Gauges to check truncation of Minor diameter - Gauge C1 & Gauge C2 Taper Thread Ring Gauge L1 & Gauge L8 Master Check Plug to check Rings L1 & L8 Plain Taper Ring to check crest Truncation of Major Diameter. Sizes covered are from 1/8 NGT to 1.1/2 NGT.

Keywords

Other Products

Related Products

ISO metric thread gauges are precision tools used to check the accuracy and conformity of ISO metric screw threads (external or internal) according to standards like ISO 68, ISO 261, or ISO 965. There are two main types of thread gauges: 1. Go and No-Go Gauges These are used for checking the dimensional tolerance of threads: Go Gauge (Plug for internal threads / Ring for external threads): Should fit perfectly, confirming that the part is within the lower limit. No-Go Gauge: Should not fit, confirming that the part doesn't exceed the upper limit. 2. Types of ISO Metric Thread Gauges Thread Plug Gauges: Used for internal (female) threads like nuts or threaded holes. Thread Ring Gauges: Used for external (male) threads like bolts or screws. 3. Thread Gauge Classes They are made according to ISO tolerance classes, commonly: 6g for external threads (bolt) 6H for internal threads (nut) 4. Usage Tips Ensure the workpiece is clean before gauging. Do not force the gauges;
View Details
ISO Metric Thread Gauges
United Thread Gauges are precision tools used to measure the pitch diameter and thread form of threaded components. They ensure compatibility and accuracy in threaded connections. These gauges are manufactured to standardized thread systems like UN (Unified National), Metric, BSW, BSP, etc. If you're referring to
View Details
United Thread Gauges
A BSP (British Standard Pipe) thread gauge is a tool used to verify the accuracy and dimensions of BSP threads, which are a common type of thread used for connecting and sealing pipes and fittings. BSP threads have two main types: parallel (BSPP, also known as G) and tapered (BSPT, also known as R). The gauge helps ensure that the threads are manufactured to the correct dimensions and meet the necessary standards for a secure and leak-proof connection.  Here's a more detailed explanation: BSP Threads: BSP threads are a standard thread type used for connecting and sealing pipe ends, particularly in Europe and other parts of the world.  Two Types: There are two primary types of BSP threads: BSPP (Parallel): BSPP threads have parallel (straight) threads, meaning the diameter remains constant along the length of the thread.  BSPT (Tapered): BSPT threads have tapered threads, meaning the diameter increases or decreases along the length of the thread.
View Details
BSP Thread Gauges - G Series
