Home Products Ring Gauge And Master Setting Ring
RING GAUGES AND MAST
RING GAUGES AND MAST
COD available

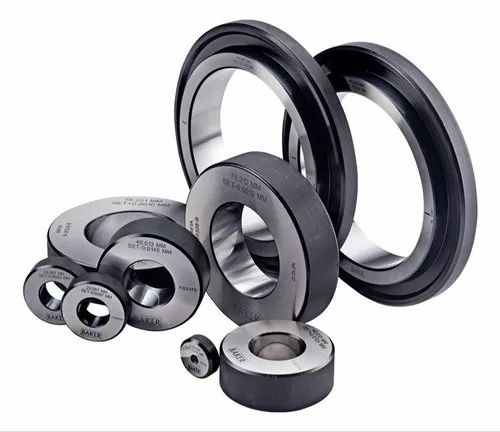

Ring Gauge And Master Setting Ring

Ring Gauge And Master Setting Ring

Share with
Share this on :

Description

Product details

RING GAUGES AND MASTER SETTING RINGS We manufacture Ring Gauges in GO-NOGO Pairs as well as single mastersetting rings to specified nominal sizes. >>MATERIAL •Steel dia: 1mm to 450mm •Carbide dia: 2mm to 60mm >>FEATURES •Made from AISI001 Special tool steel (OHNS With Tungsten) and submicron Tungsten Carbide. •Stabilised and sub-zero treated (-80deg C) for better dimension retention and wear resistance. •Calibrated on CarlZzeiss/ Octagon-Heidenhain Universal length measuring machine (NABL). •Actual dimension are laser marked on master setting rings.

Keywords

Other Products

Related Products

ISO metric thread gauges are precision tools used to check the accuracy and conformity of ISO metric screw threads (external or internal) according to standards like ISO 68, ISO 261, or ISO 965. There are two main types of thread gauges: 1. Go and No-Go Gauges These are used for checking the dimensional tolerance of threads: Go Gauge (Plug for internal threads / Ring for external threads): Should fit perfectly, confirming that the part is within the lower limit. No-Go Gauge: Should not fit, confirming that the part doesn't exceed the upper limit. 2. Types of ISO Metric Thread Gauges Thread Plug Gauges: Used for internal (female) threads like nuts or threaded holes. Thread Ring Gauges: Used for external (male) threads like bolts or screws. 3. Thread Gauge Classes They are made according to ISO tolerance classes, commonly: 6g for external threads (bolt) 6H for internal threads (nut) 4. Usage Tips Ensure the workpiece is clean before gauging. Do not force the gauges;
View Details
ISO Metric Thread Gauges
United Thread Gauges are precision tools used to measure the pitch diameter and thread form of threaded components. They ensure compatibility and accuracy in threaded connections. These gauges are manufactured to standardized thread systems like UN (Unified National), Metric, BSW, BSP, etc. If you're referring to
View Details
United Thread Gauges
A BSP (British Standard Pipe) thread gauge is a tool used to verify the accuracy and dimensions of BSP threads, which are a common type of thread used for connecting and sealing pipes and fittings. BSP threads have two main types: parallel (BSPP, also known as G) and tapered (BSPT, also known as R). The gauge helps ensure that the threads are manufactured to the correct dimensions and meet the necessary standards for a secure and leak-proof connection.  Here's a more detailed explanation: BSP Threads: BSP threads are a standard thread type used for connecting and sealing pipe ends, particularly in Europe and other parts of the world.  Two Types: There are two primary types of BSP threads: BSPP (Parallel): BSPP threads have parallel (straight) threads, meaning the diameter remains constant along the length of the thread.  BSPT (Tapered): BSPT threads have tapered threads, meaning the diameter increases or decreases along the length of the thread.
View Details
BSP Thread Gauges - G Series
